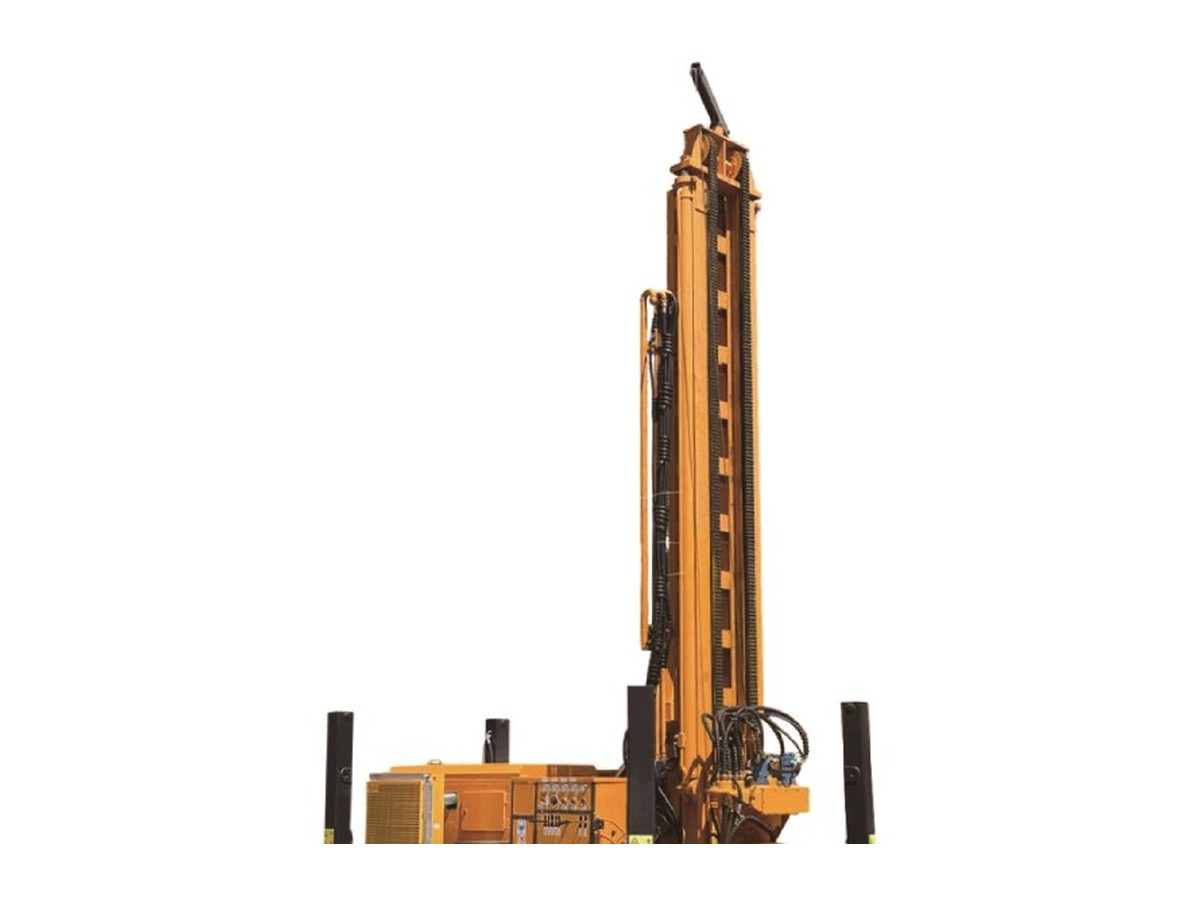

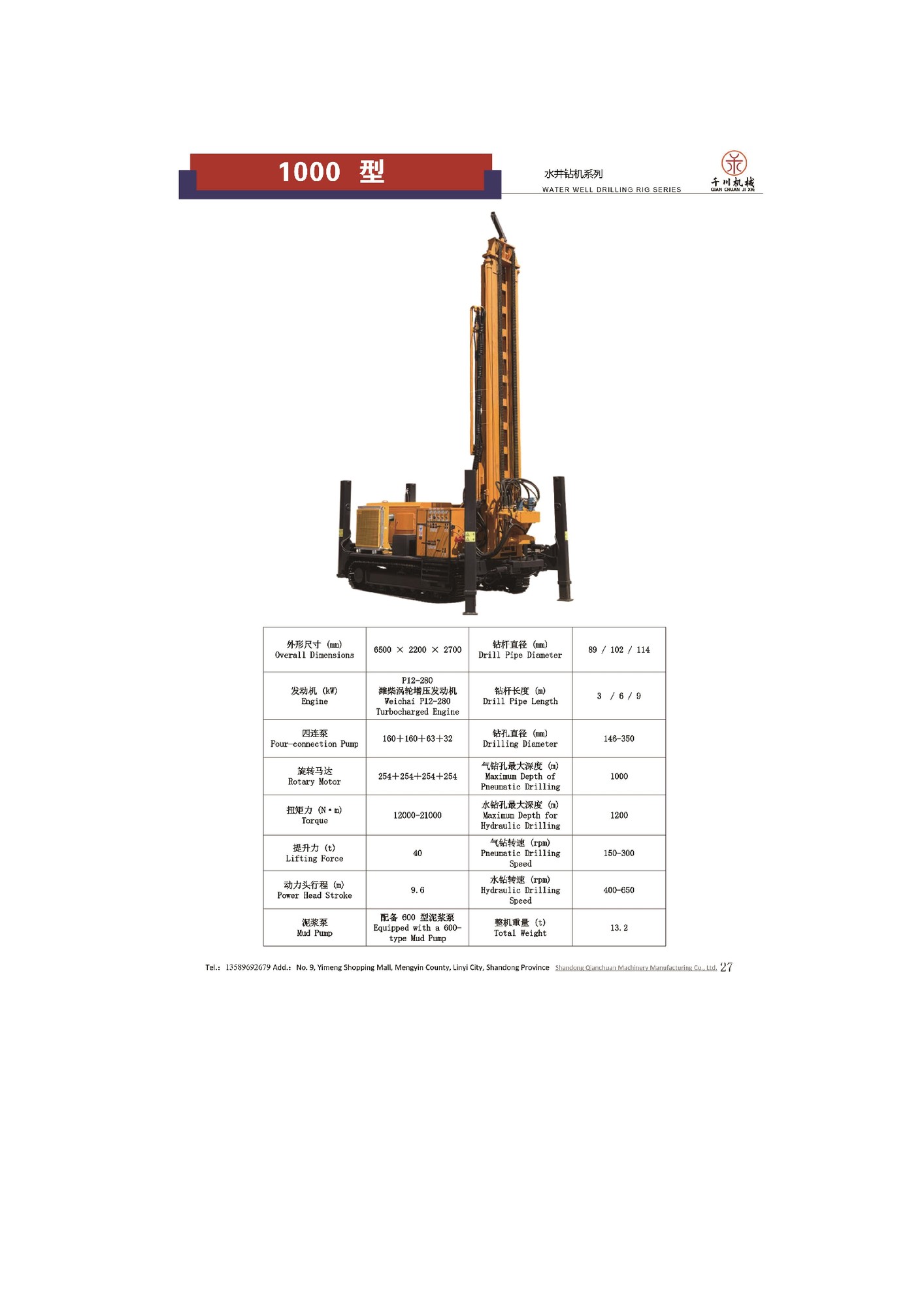

The Qianchuan Model 1000 Crawler Water Well Drilling Rig belongs to the water well drilling rig series. With a crawler chassis it moves flexibly on complex terrain. It mainly drills with pneumatic DTH hammers and is suitable for domestic water wells, agricultural irrigation wells and geothermal air-conditioning holes, easy to operate with high penetration efficiency. See images for detailed specifications.
| Specification | Value |
|---|---|
| Overall Dimensions | 6500 × 2200 × 2700 |
| Engine | 292-299 / Weichai F12-290 Turbocharged Engine |
| Four-cylinder Pump | 160+160+63+32 |
| Rotary Motor | 254+254+254+254 |
| Torque | 12000-21000 |
| Lifting Force | 40 |
| Power Head Stroke | 9.6 |
| Mud Pump | 200 Equipped with a 600-type Mud Pump |
| Drill Pipe Diameter | 89 / 102 / 114 |
| Drill Pipe Length | 3 / 6 / 9 |
| Drilling hole Diameter | 140-350 |
| Maximum Depth of Pneumatic Drilling | 1000 |
| Maximum Depth for Hydraulic Drilling | 1200 |
| Pneumatic Drilling Speed | 150-300 |
| Hydraulic Drilling Speed | 400-650 |
| Total Weight | 13.2 |
