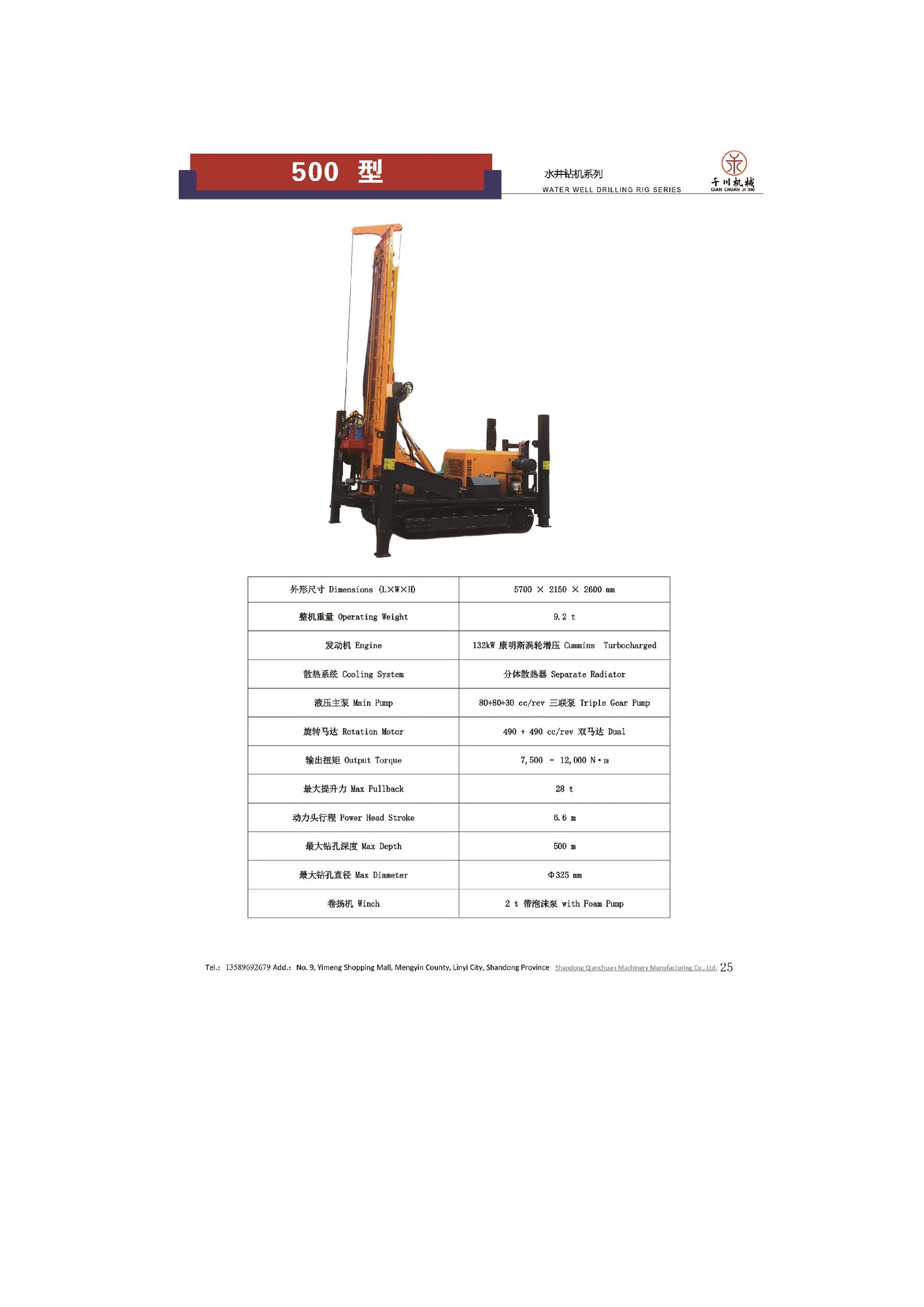

The Qianchuan Model 500 Crawler Water Well Drilling Rig belongs to the water well drilling rig series. With a crawler chassis it moves flexibly on complex terrain. It mainly drills with pneumatic DTH hammers and is suitable for domestic water wells, agricultural irrigation wells and geothermal air-conditioning holes, easy to operate with high penetration efficiency. See images for detailed specifications.
| Specification | Value |
|---|---|
| Dimensions (L×W×H) | 5700 × 2150 × 2800 mm |
| Operating Weight | 8.2 t |
| Engine | 132KW Cummins Turbocharged |
| Cooling System | Separate Radiator |
| Main Pump | 80+80+80 cc/rev Triple Gear Pump |
| Rotation Motor | 490 + 490 cc/rev Dual |
| Output Torque | 7,500 - 12,000 N·m |
| Max Pullback | 28 t |
| Power Head Stroke | 6.6 m |
| Max Depth | 500 m |
| Max Diameter | Φ525 mm |
| Winch | 2 t with Foam Pump |
