Product Detail
Product Parameter

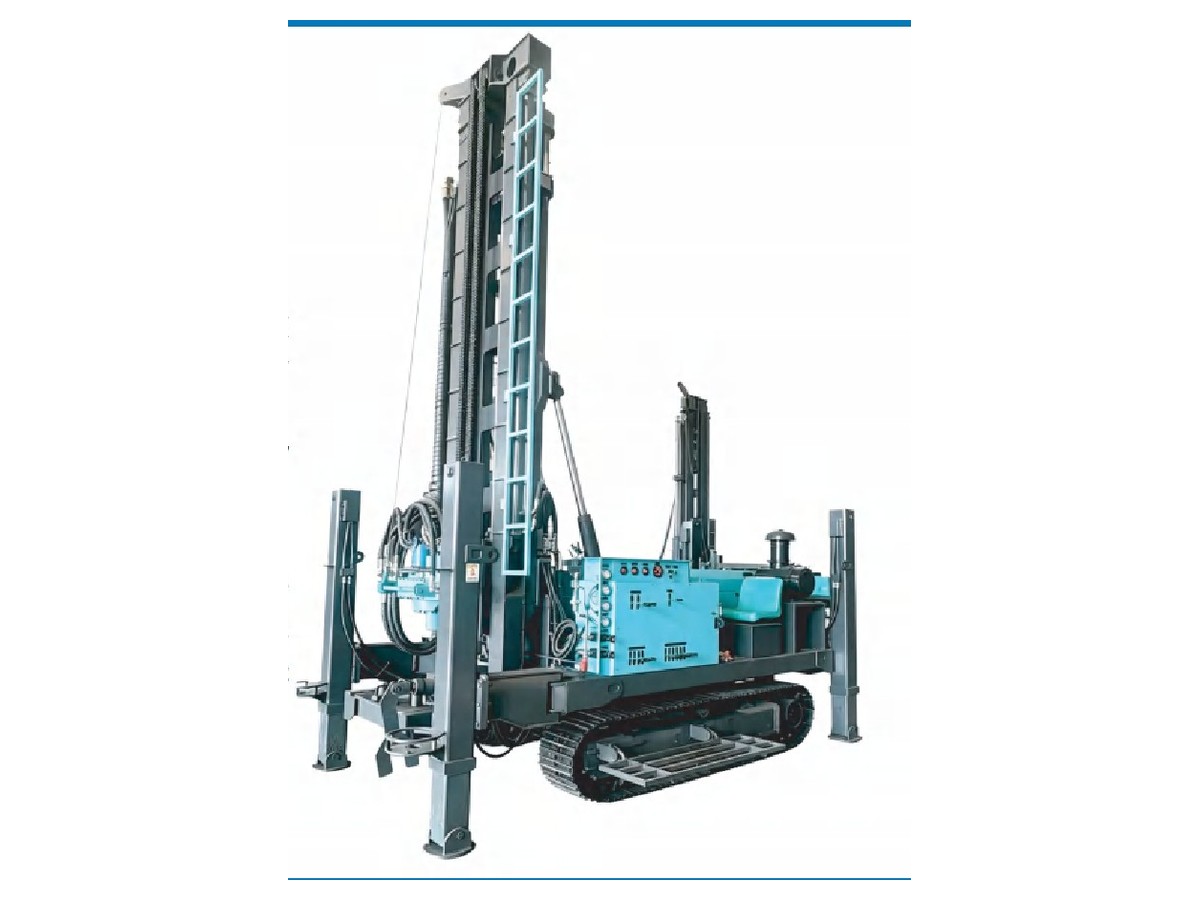

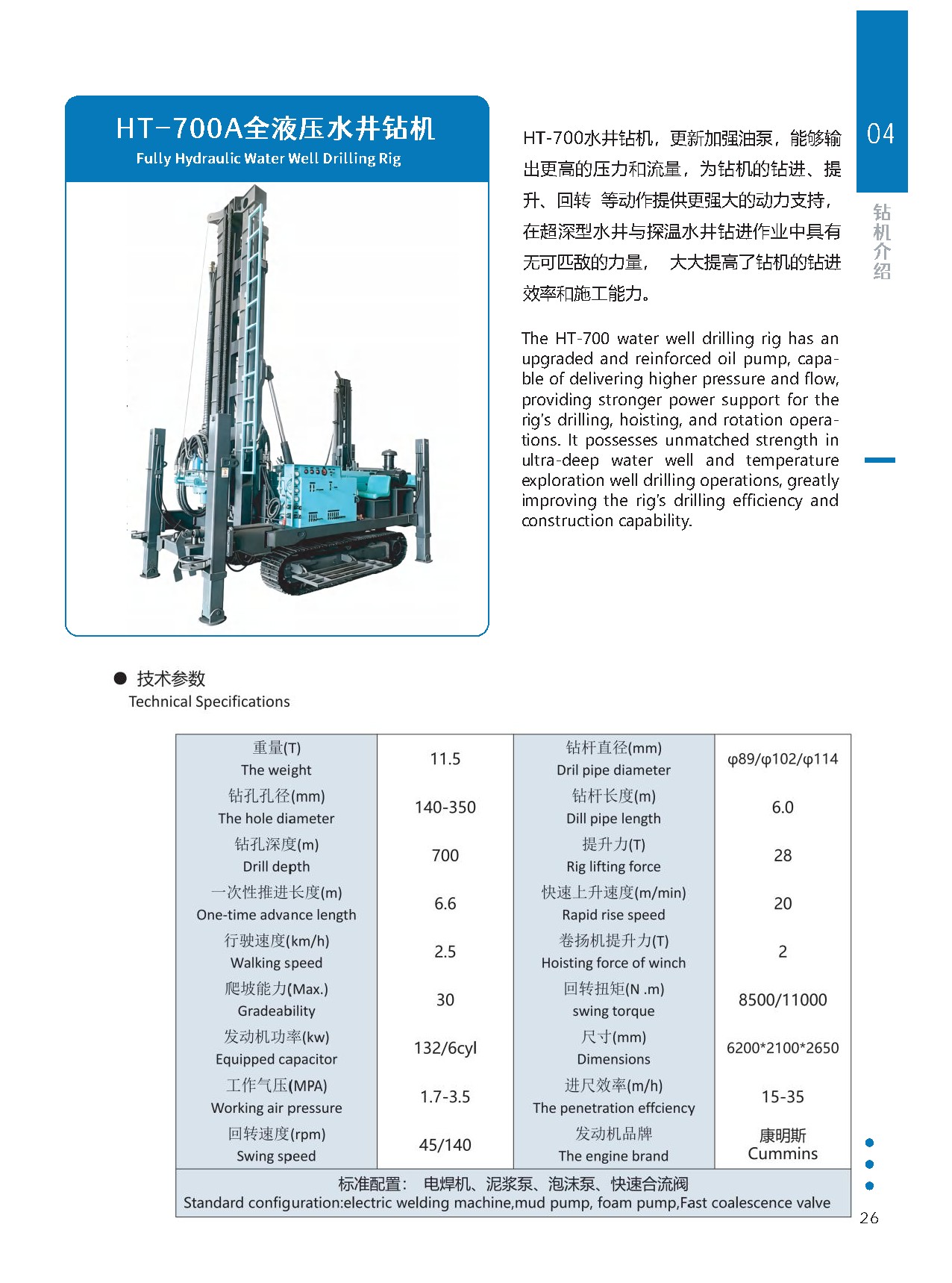

The HT-700 water well drilling rig has anupgraded and reinforced oil pump, capa-ble of delivering higher pressure and flow,providing stronger power support for therig's drilling, hoisting, and rotation opera-tions. It possesses unmatched strength inultra-deep water well and temperatureexploration well drilling operations, greatlyimproving the rig's drilling efficiency andconstruction capability.
| Specification | Value |
|---|---|
| The weight | 11.5 |
| The hole diameter | 140-350 |
| Drill depth | 700 |
| One-time advance length | 6.6 |
| Walking speed | 2.5 |
| Gradeability | 30 |
| Equipped capacitor | 132/6cyl |
| Working air pressure | 1.7-3.5 |
| Swing speed | 45/140 |
| Dril pipe diameter | φ89/φ102/φ114 |
| Dill pipe length | 6.0 |
| Rig lifting force | 28 |
| Rapid rise speed | 20 |
| Hoisting force of winch | 2 |
| swing torque | 8500/11000 |
| Dimensions | 6200*2100*2650 |
| The penetration efficiency | 15-35 |
| The engine brand | Cummins |
| Standard configuration:electric welding machine,mud pump, foam pump,Fast coalescence valve | - |
