Product Detail
Product Parameter

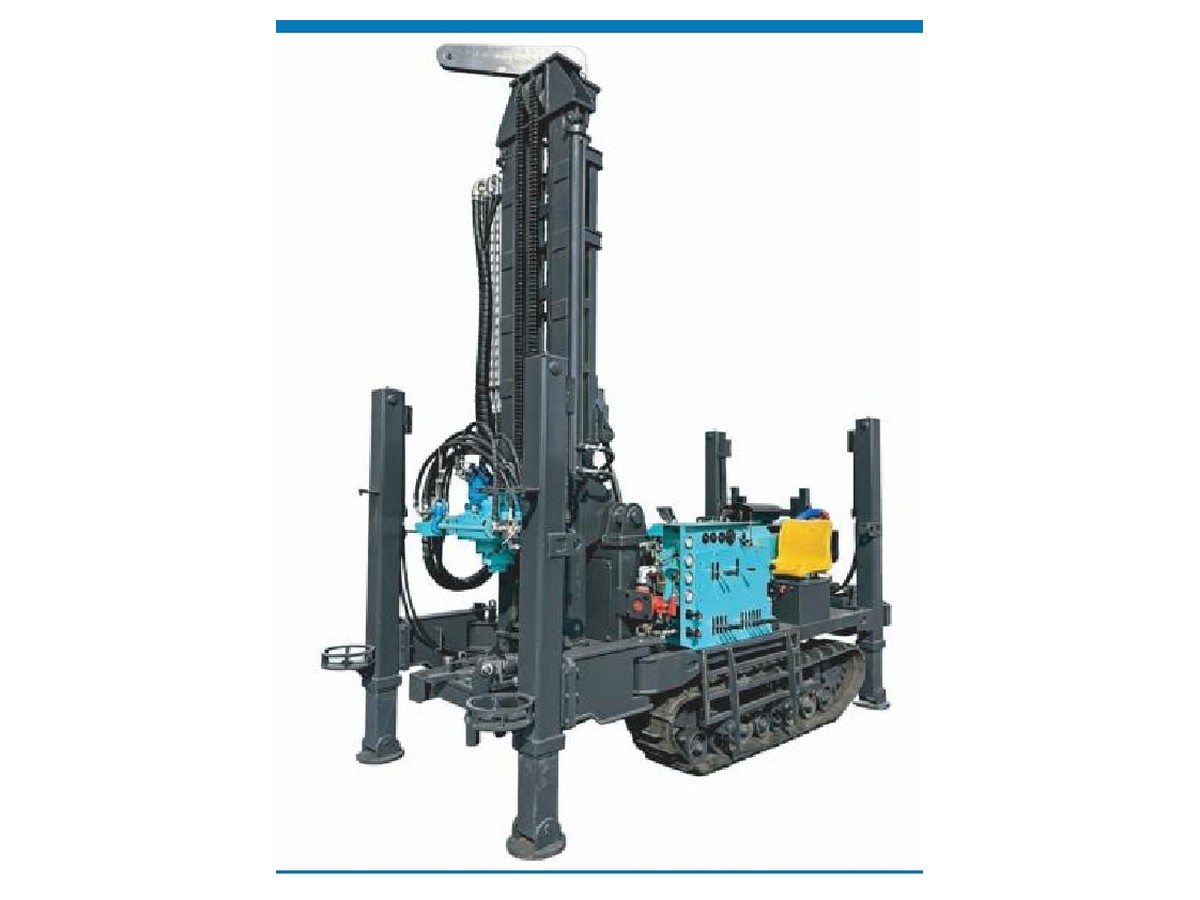

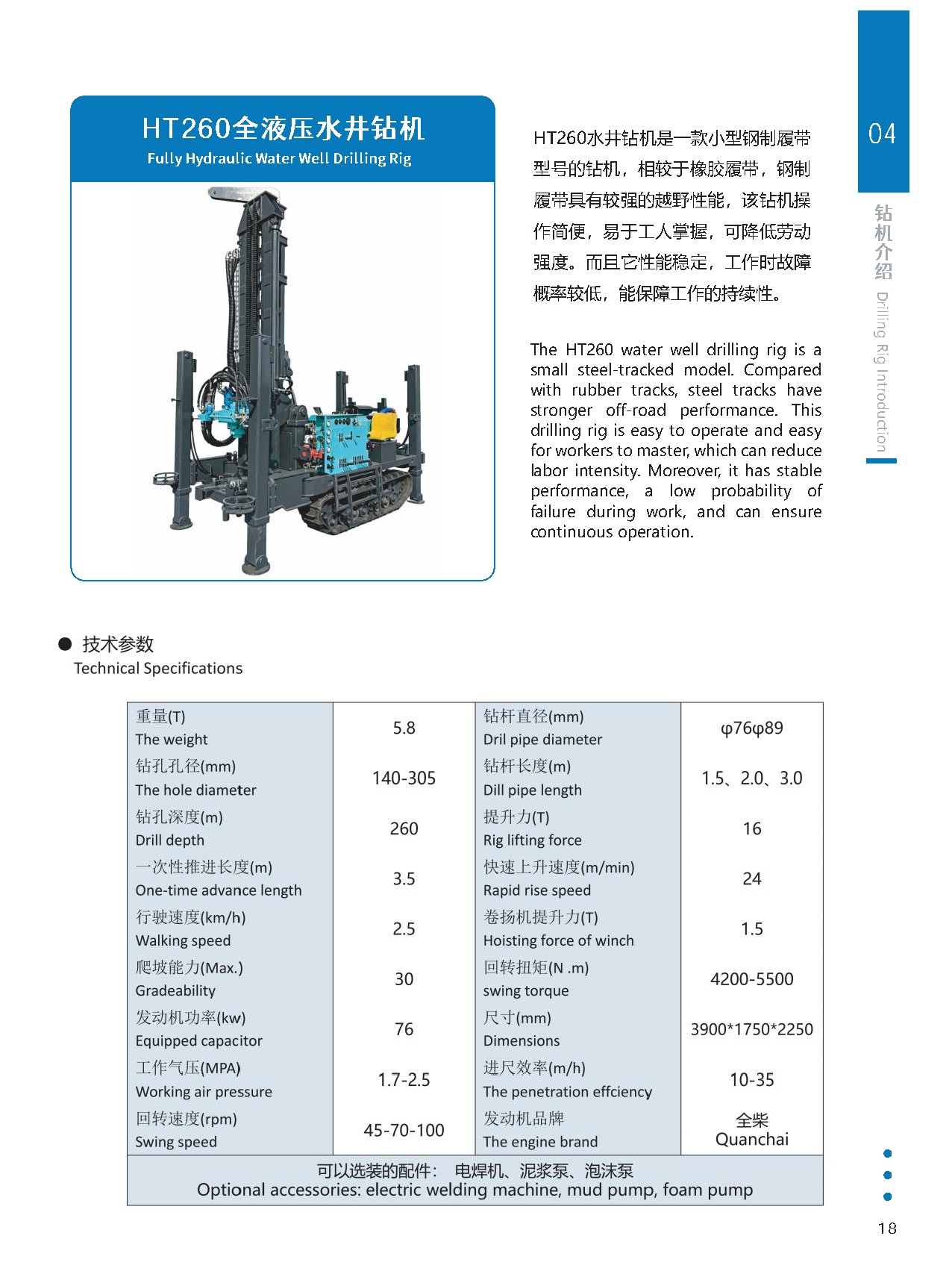

The HT260 water well drilling rig is asmall steel-tracked model. Comparedwith rubber tracks, steel tracks havestronger off-road performance. Thisdrilling rig is easy to operate and easyfor workers to master, which can reducelabor intensity. Moreover, it has stableperformance, a low probability offailure during work, and can ensurecontinuous operation.DrillingRigIntroduction
| Specification | Value |
|---|---|
| The weight | 5.8 |
| The hole diameter | 140-305 |
| Drill depth | 260 |
| One-time advance length | 3.5 |
| Walking speed | 2.5 |
| Gradeability | 30 |
| Equipped capacitor | 76 |
| Working air pressure | 1.7-2.5 |
| Swing speed | 45-70-100 |
| Dril pipe diameter | φ76φ89 |
| Dill pipe length | 1.5 2.0 3.0 |
| Rig lifting force | 16 |
| Rapid rise speed | 24 |
| Hoisting force of winch | 1.5 |
| swing torque | 4200-5500 |
| Dimensions | 3900*1750*2250 |
| The penetration efficiency | 10-35 |
| The engine brand | Quanchai |
| Optional accessories: electric welding machine, mud pump, foam pump | - |
