Product Detail
Product Parameter

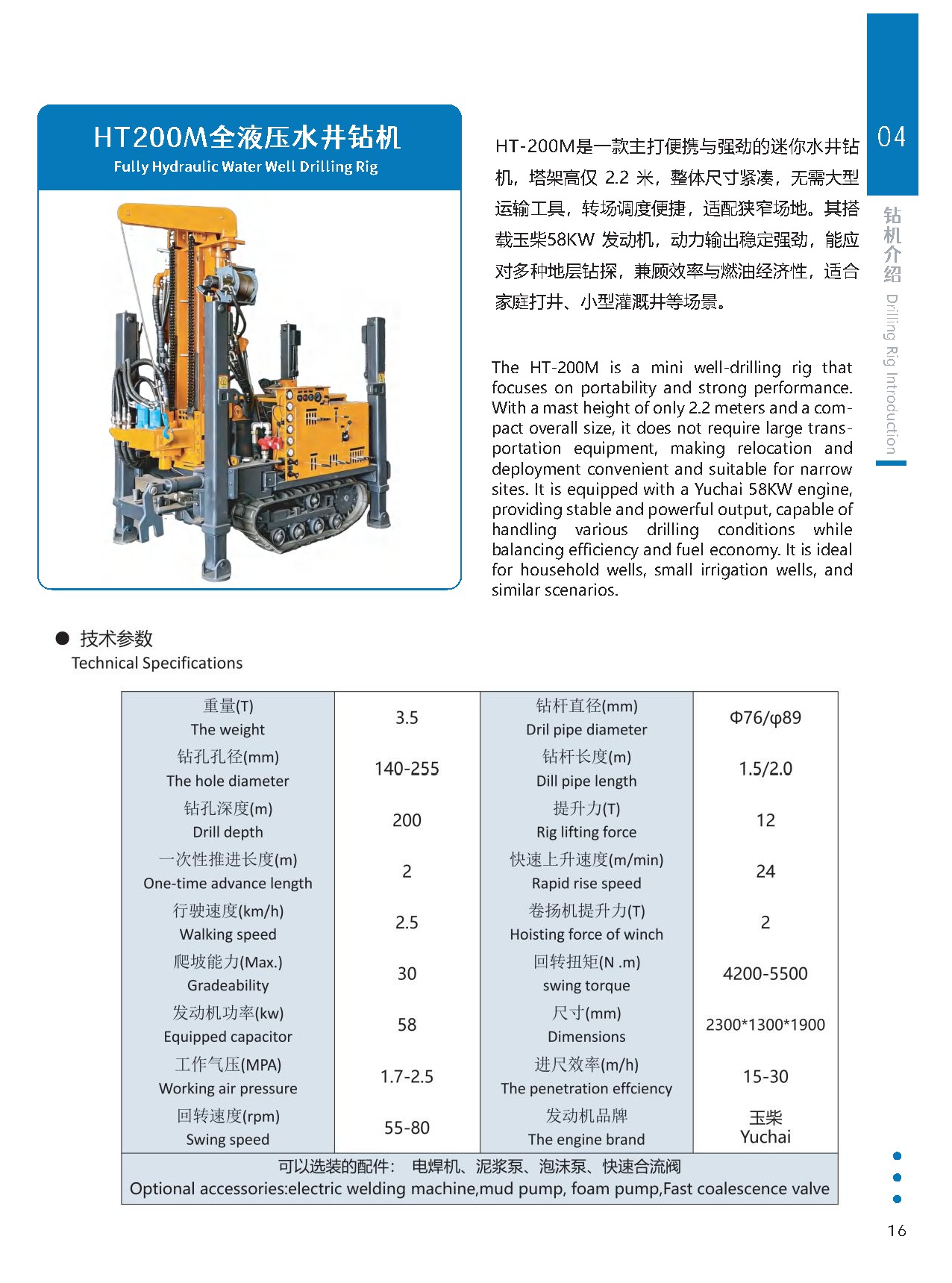

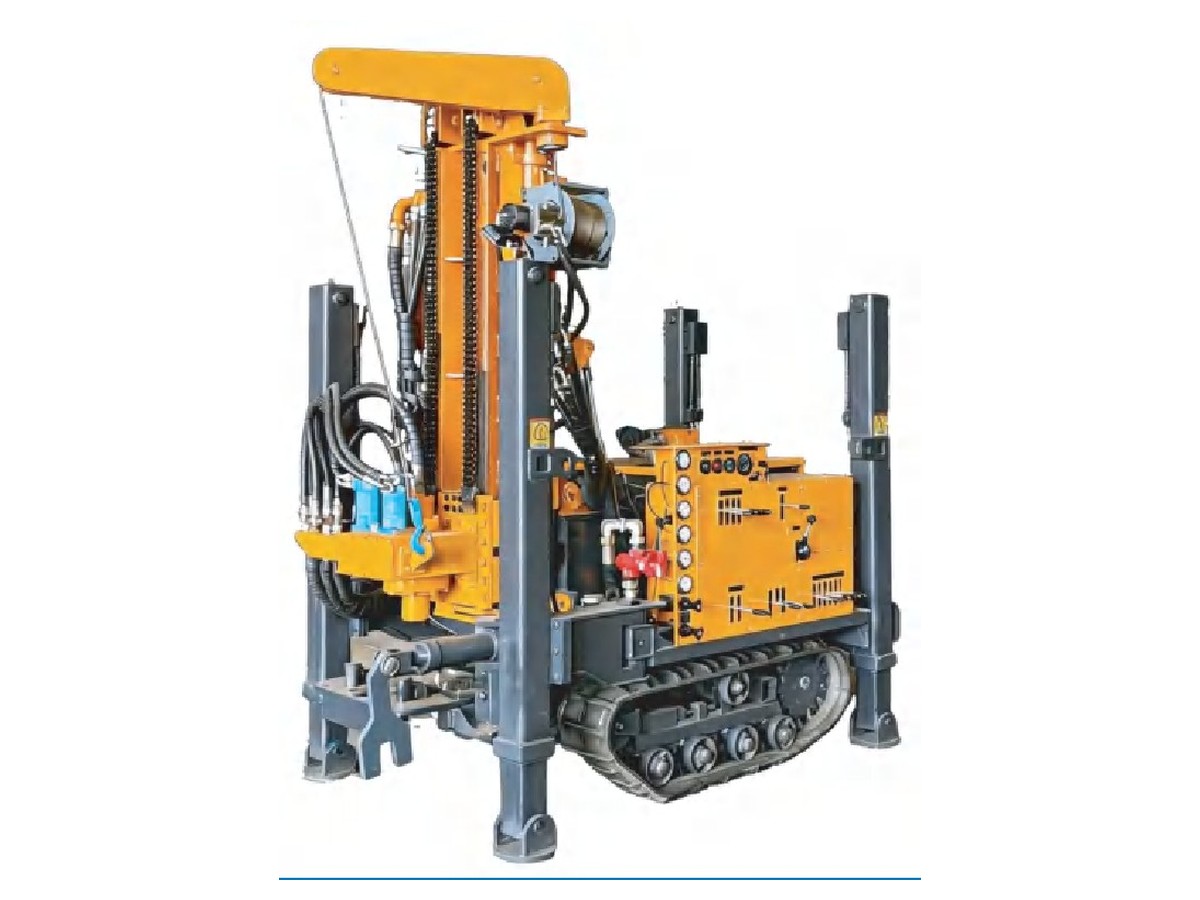

The HT-200M is a mini well-drilling rig thatfocuses on portability and strong performance.With a mast height of only 2.2 meters and a com-pact overall size, it does not require large trans-portation equipment, making relocation anddeployment convenient and suitable for narrowsites. It is equipped with a Yuchai 58KW engine,providing stable and powerful output, capable ofhandling various drilling conditions whilebalancing efficiency and fuel economy. It is idealfor household wells, small irrigation wells, andsimilar scenarios.DrillingRigIntroduction
| Specification | Value |
|---|---|
| The weight | 3.5 |
| The hole diameter | 140-255 |
| Drill depth | 200 |
| One-time advance length | 2 |
| Walking speed | 2.5 |
| Gradeability | 30 |
| Equipped capacitor | 58 |
| Working air pressure | 1.7-2.5 |
| Swing speed | 55-80 |
| Dril pipe diameter | Φ76/p89 |
| Dill pipe length | 1.5/2.0 |
| Rig lifting force | 12 |
| Rapid rise speed | 24 |
| Hoisting force of winch | 2 |
| swing torque | 4200-5500 |
| Dimensions | 2300*1300*1900 |
| The penetration efficiency | 15-30 |
| The engine brand | Yuchai |
| Optional accessories:electric welding machine,mud pump, foam pump,Fast coalescence valve | - |
