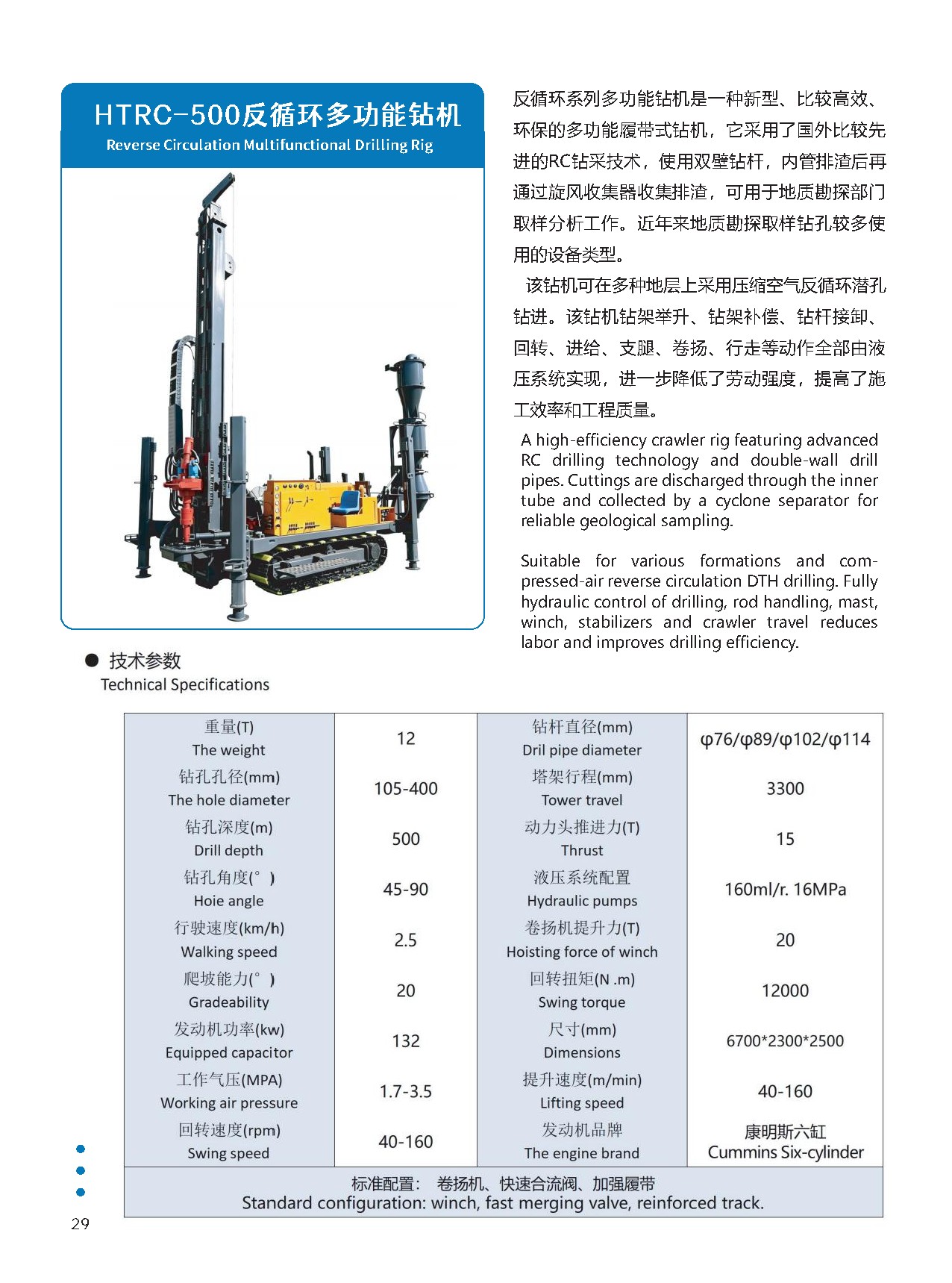

A high-efficiency crawler rig featuring advancedRC drilling technology and double-wall drillpipes. Cuttings are discharged through the innertube and collected by a cyclone separator forreliable geological sampling.Suitable for various formations and com-pressed-air reverse circulation DTH drilling. Fullyhydraulic control of drilling, rod handling, mast,winch, stabilizers and crawler travel reduceslabor and improves drilling efficiency.
| Specification | Value |
|---|---|
| The weight | 12 |
| The hole diameter | 105-400 |
| Drill depth | 500 |
| Hole angle | 45-90 |
| Walking speed | 2.5 |
| Gradeability | 20 |
| Equipped capacitor | 132 |
| Working air pressure | 1.7-3.5 |
| Swing speed | 40-160 |
| Dril pipe diameter | φ76/φ89/φ102/φ114 |
| Tower travel | 3300 |
| Thrust | 15 |
| Hydraulic pumps | 160ml/r. 16MPa |
| Hoisting force of winch | 20 |
| Swing torque | 12000 |
| Dimensions | 6700*2300*2500 |
| Lifting speed | 40-160 |
| The engine brand | Cummins Six-cylinder |
| Standard configuration: winch, fast merging valve, reinforced track. | - |
